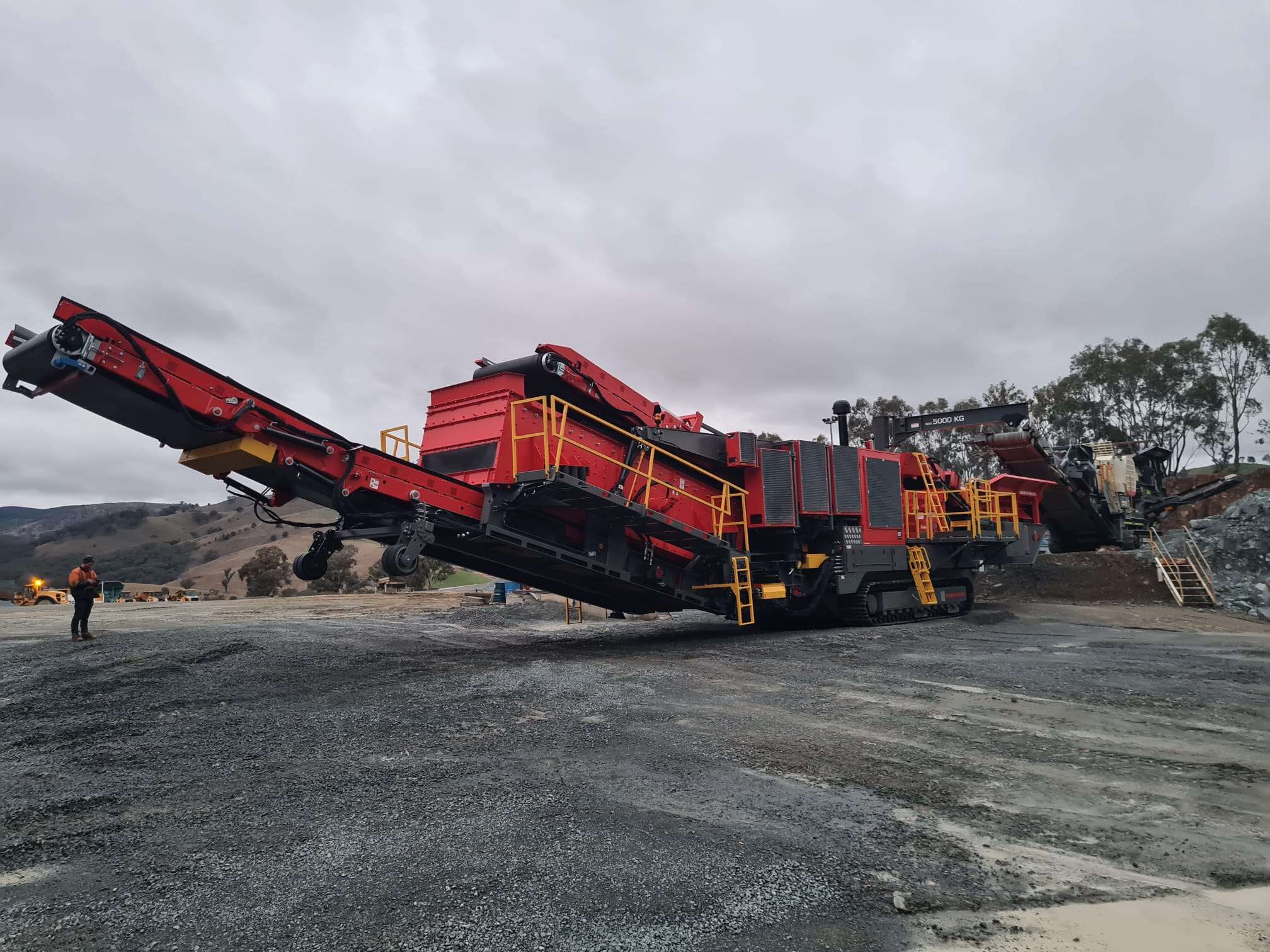

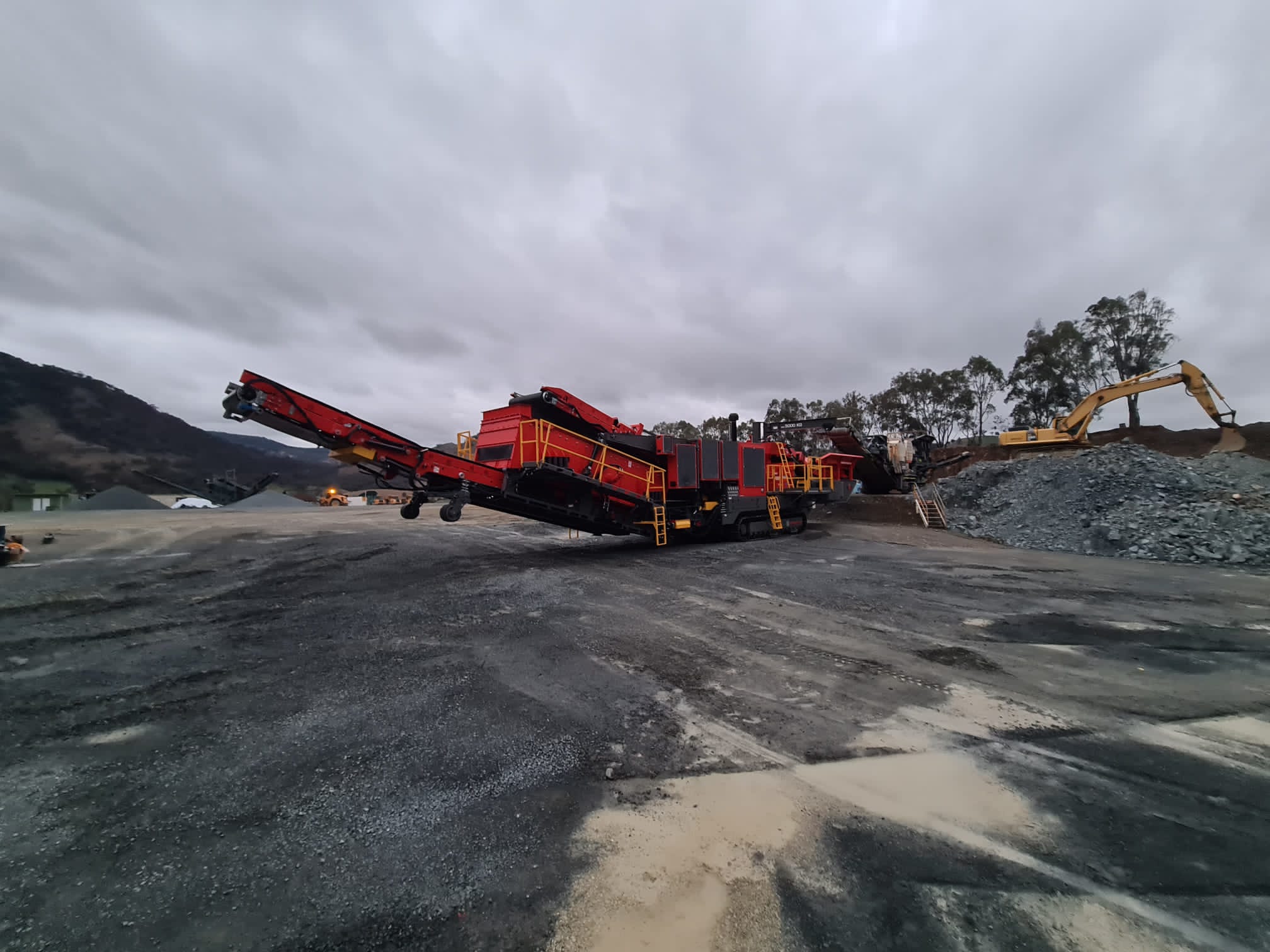

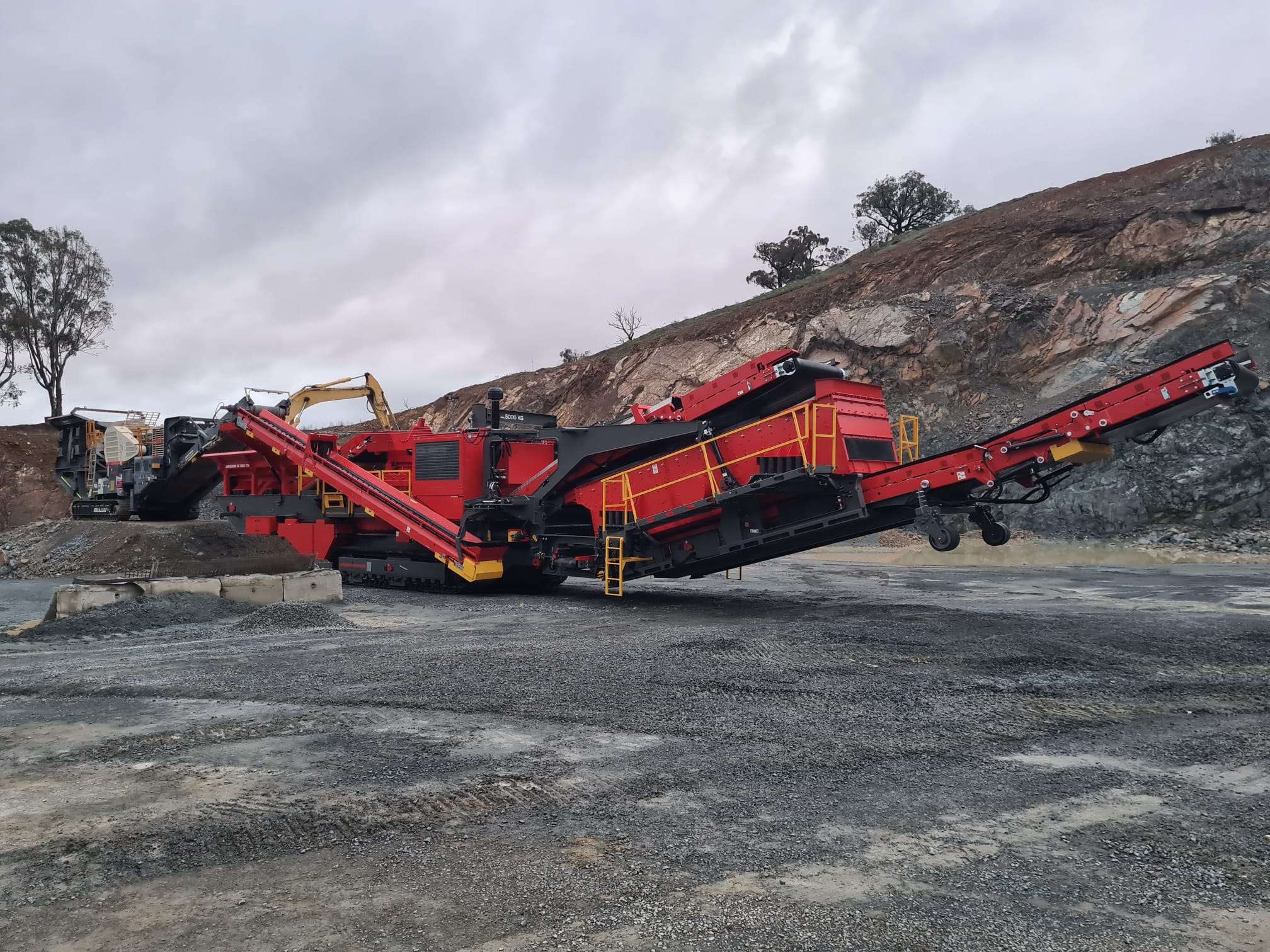

The GIPO Mag’Impact VSI is in a class of its own! This unique machine combines a Feeding unit, Integrated oversize feedback with Magotteaux Vertical Shaft Impactor, you can crush and shape in one pass with one machine. Along with exceptional wear rates and low maintenance ,ensures lower cost per tonne, this machine sets new standards in crushing.

Features & benefits include:

  • No automation, just simple diesel hydraulics
  • Oversized radiators and coolers
  • Single or double deck screen options available
  • Caterpillar CAT C18 563kW diesel engine stage
  • Rexroth components for pumps and drives
  • Feed conveyor with hopper 5m³
  • 1200mm Feed conveyor with remote control
  • Conveyor belt main discharge 1600 x 12000 mm
  • Feed size up to 130mm
  • 1000tph head drum fitted to belt Feed hopper
  • 4 bar rotor in VSI
