GIPO B1170 JAW

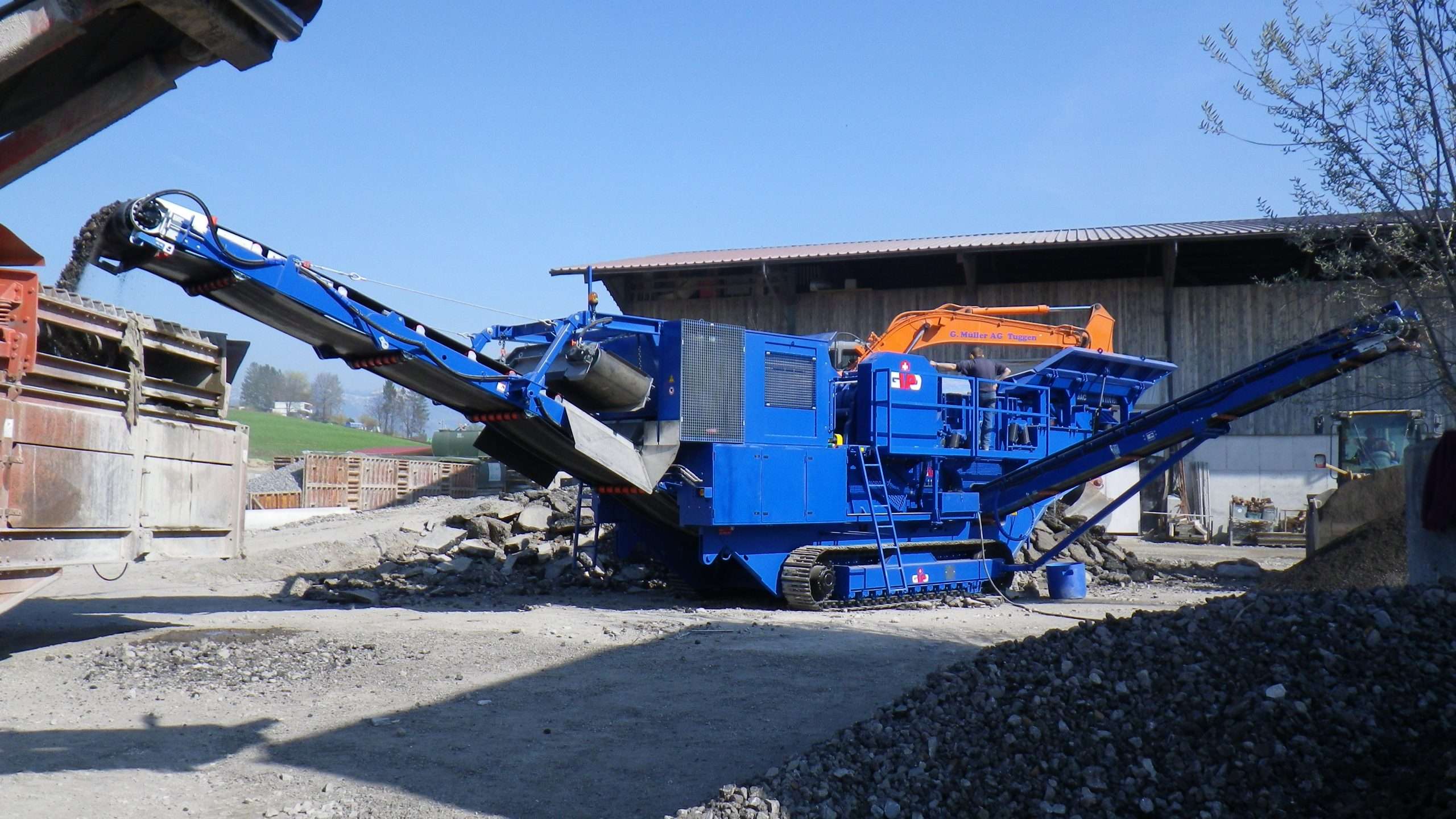

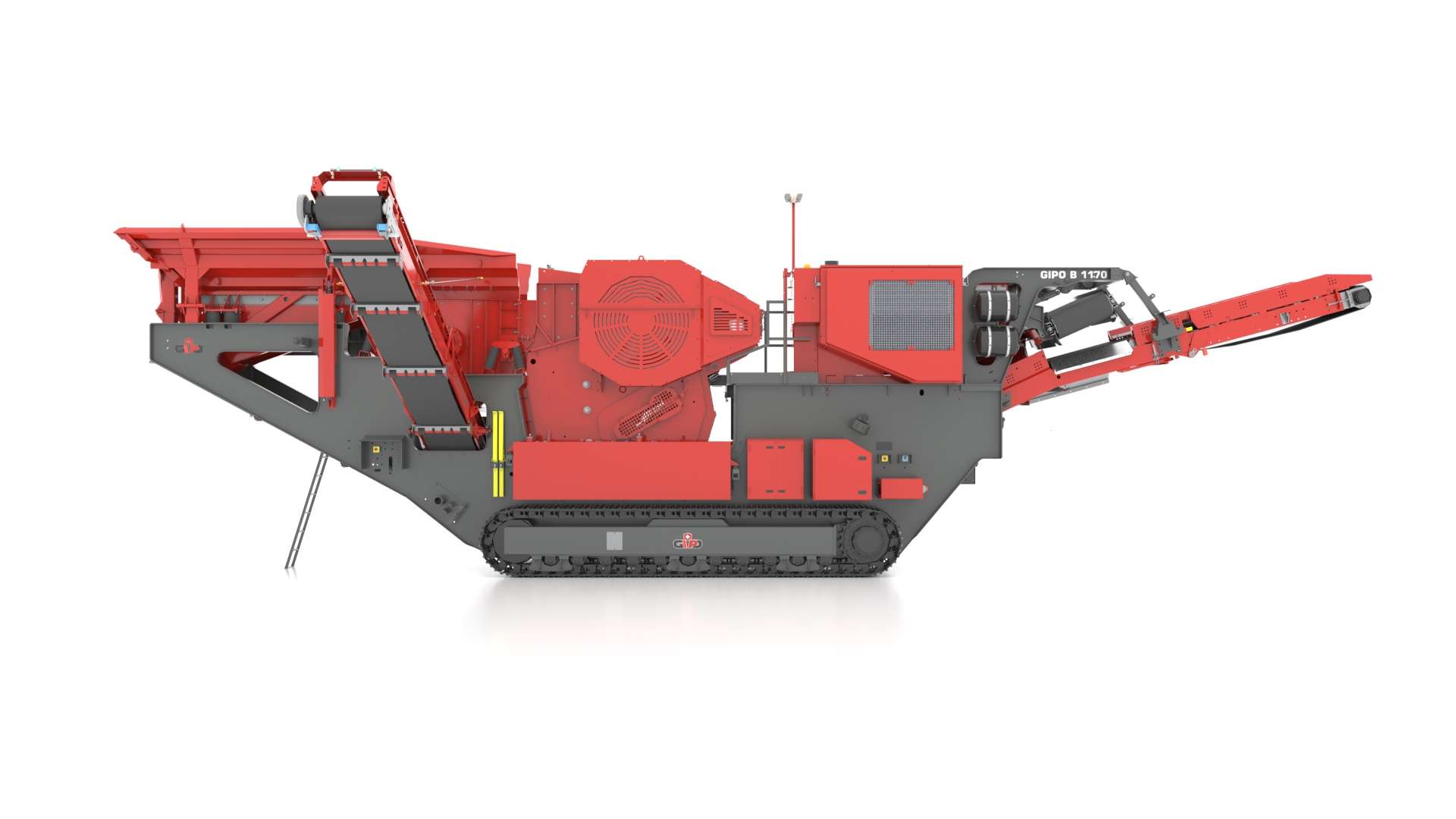

The GIPO B1170 Jaw is the idea primary crusher for breaking medium to hard rock. With it’s well-proven components combined with the latest technology this track mounted jaw can be utilised in various applications. The narrow entry angle between the fixed and moving jaws as well as the long crushing jaws and the ideal stroke length of the eccentric are designed for maximum crushing capacity, even with difficult feed material.

The high serviceability of the crusher also means high economy, especially when one considers the enormous time saving on exchanging the jaw and cheek plates. These advantages are only so pronounced because of GIPO’s mature hydraulics technology.

Features & benefits include:

  • Easy to transport and quickly operative with the track-laying gear enabling rapid on site positioning
  • Remote control for one man operation

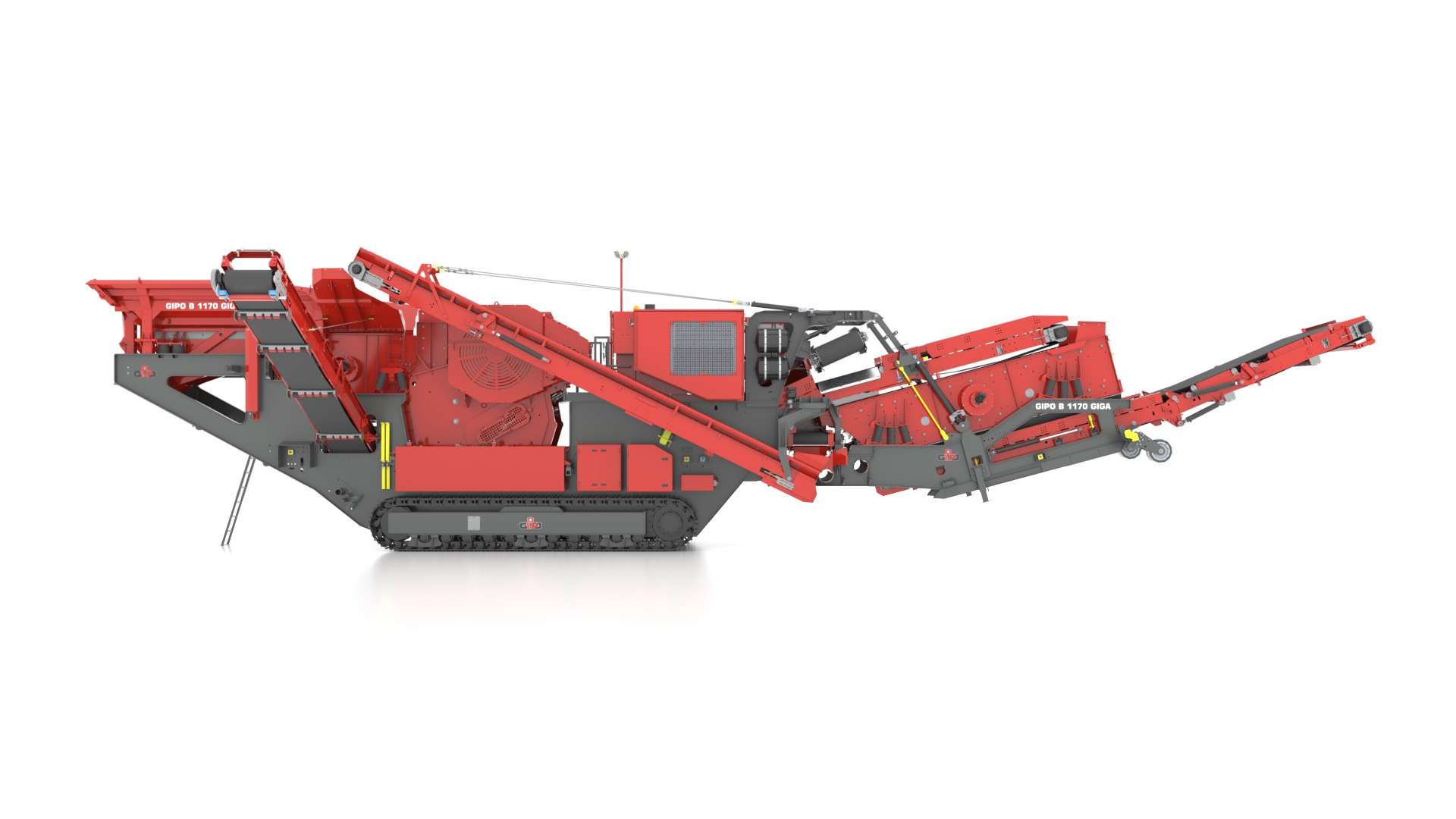

  • Coupling and uncoupling ability of a screen unit hydraulically (which can be done in under 10 minutes) to screen off and produce a more precise end product
  • Side conveyor
  • Permanent magnet
  • Water spraying
  • 5.5 m³ Feed Hopper
  • Inlet Jaw Crusher 1120 x 680mm
  • Feeder Channel 1100 x 4300mm
Download Brochure Call: 1800 571 464

Enquire About this Product
